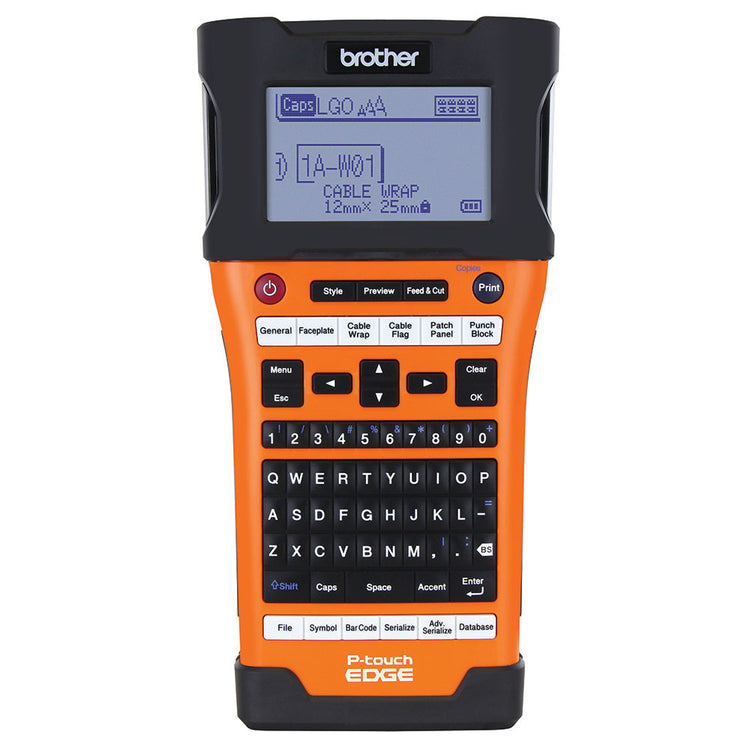

Brother PT-E500 Label Printer Kit-Image Supply

Brother PT-E500 Label Printer Kit

Regular price
Sale price $ 319.95 Regular price $ 349.95 -8%
  • Better Price for an Industrial Handheld Labeling Tool Kit – Get a powerful industrial labeling tool kit with label design software at the price of just the competitive labeler
  • Computer Connectivity – Comes with software to design and print custom labels from a computer, or download them into the labeling tool and print without a computer
  • Print Labels Faster – New mechanism design with built-in fully automatic cutter is compatible with HGe tape for producing labels up to 3x faster than previous models
  • Smart Labeling Application Keys – Designed to help you save time and start printing labels for cables, faceplates, patch panels and more without the learning curve or reading user manuals
  • Easy to Understand Large LCD Display – Larger back-lit LCD display shows at-a-glance all the label design settings, including label application icons and print preview to know what the label will look like before printing
  • Advanced Alpha and Numeric Serializing – Quickly preprint labels for a project by automatically incrementing a number and/or letter individually or simultaneously
  • Prints on Heat Shrink Tubing – Compatible with the new line of HSe heat shrink tubing that is smear resistant for marking cables, fiber and wires
  • HGe and TZe Tapes – Compatible with HGe and TZe tapes that offer adhesive and color choices for virtually any labeling application
Hardware Features
Model Type Industrial Handheld
Tape Family HGe, TZe, HSe
Tape Sizes 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
Tape Length 8m (26.2ft)
Tape Technology Laminating Thermal Transfer
Tape Types Standard Adhesive, Extra-Strength Adhesive, Flexible ID Tape, Heat Shrink Tube, Tamper-Evident, Iron-On Fabric, Acid-Free
LCD Display Large Backlit LCD (15 Characters x 2 Lines)
Backlight Yes
Maximum Print Resolution 180dpi
Maximum Print Speed Up to 30mm/sec (AC Adapter), Up to 20mm/sec (Battery)
Keyboard QWERTY with Rubber Keys
Cutter Fully Automatic
Batteries Includes Long Life Li-ion Rechargeable Battery Pack (BA-E001)
Operation Mode Standalone, Download Standalone, Print From Computer
Printer Emulation Raster Graphics
Power Switch Soft Rubber Key
Power Supply External AC Adapter & Internal Li-ion Battery Standard, Internal AA Size (Optional)
Alkaline Battery Battery (Optional)
AC Adapter Included (AD-E001)
Preview Key Yes, WYSIWYG Graphic Display
Interface USB (Mini)
Software Features
Microsoft Word/Outlook/Excel Add-ins Yes
Auto Power Off Yes
Number of Fonts 14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic)
Fonts 10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid)
Font Sizes 9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto)
Number of Font Styles 10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid)
Built-in Symbols 384 Industrial Symbols
Font Styles 10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid)
Max. Print Height 18.0 mm
Maximum Print Lines Up to 7 Lines Standalone, Download Templates with Multiple Lines
Multi-Block Up to 99 Blocks
Label Length Setting Auto, 25mm to 999mm (Label Type Setting)
Auto Incrementation Standard & Advanced Serialization Methods
Auto Numbering     Yes
Horizontal Alignment Center, Left, Right, Justified
Vertical Printing Yes
Mirror Printing No
Rotate Printing Input & Rotate Line by Line, Rotate & Repeat
Text Insert Yes
Text Framing/Fill Pattern 6 Frames / No Fill Patterns
Multi-copy Print Up to 99 Copies
Memory Up to 99 Files or Up to 18297 Characters, Up to 6MB Downloadable Templates/Databases/Images
Memory for Transferred Data (Number) Up to 6MB Downloadable Templates/Databases/Images
Favorites Function Key No
Date/Time Stamp No
Snapper function Yes
Download data to unit Yes
Built-in Designs/Templates Download Templates, Databases & Images
Download templates from Brother Cloud Download Custom Designs/Templates & Built-In (General, Faceplates, Cable Wrap, Cable Flag, Heat Shrink, Patch Panel, Punch Block)
Auto Formats General, Faceplates, Cable Wrap, Cable Flag, Heat Shrink, Patch Panel, Punch Block
Database Printing Print From Database On Computer or Download Database & Print Standalone
Database File Compatibility MSDE/SQL Server, MS Access (*.accdb, *.mdb), MS Excel (*.xlsx, *.xls), Text (*.csv, *.txt)
Internal Fonts 14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic)
Internal Font Sizes 9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto)
Internal Font Styles 10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid)
Barcoding Standalone Barcode System & Print From Computer
Barcodes (Stand-alone mode)     9 (Code39, Code128, ITF (I-2of5), GS1-128 (UCC/EAN128), Codabar (NW-7), UPC-A, UPC-E, EAN8, EAN13)
Barcodes (connected to computer) 21 (Code39, Code128, ITF (I-2of5), GS1-128 (UCC/EAN128), GS1 DataBar (RSS), GS-1 Composite, Codabar (NW-7), UPC-A, UPC-E, EAN8, EAN13, ISBN-2, ISBN-5, Postnet, Laser Barcode, PDF-417, QR Code, Micro QR Code, Data Matrix, MaxiCode, Aztec)
(PC) Connectivity USB (Mini) For Downloading & Printing
(Mac) Connectivity USB (Mini) For Printing Only
Operating System Windows® 8, 8.1, 7, 10, Windows Vista®, Mac® OS X 10.6 & later
Trademark P-touch EDGE®
Carton Contents
Included Items PT-E500, Protective Carrying Case, AC Adapter (AD-E001), Li-ion Rechargeable Battery Pack (BA-E001), TZeFX231 12mm x 8m (0.47in x 26.2ft) Black on White Flexible ID Tape, Wrist Strap, CD (P-touch Editor 5.1 Software, Printer Drivers, Transfer Manager, User Guides), Warranty & Product Registration Sheet
Accessories
Carrying Case Included
Rechargeable Battery Included
Model Details
Housing Dimensions 4.9" (w) x 3.7" (h) x 9.8" (d)
Housing Weight 2.0 lbs (without tape & batteries)
Housing Color High Visibility Industrial Orange
Warranty 2 Years Limited Exchange Warranty
UPC Code 0-12502-63598-7
