Hardware Features |
|
Model Type |
Industrial Wireless Handheld |
Tape Family |
HGe, TZe, HSe |
Tape Sizes |
3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm |
Tape Length |
8m (26.2ft) |
Tape Technology |
Laminating Thermal Transfer |
Tape Types |
Standard Adhesive, Extra-Strength Adhesive, Flexible ID Tape, Heat Shrink Tube, Tamper-Evident, Iron-On Fabric, Acid-Free |
LCD Display |
Large Backlit LCD (17 Characters x 2 Lines) |
Backlight |
Yes |
Maximum Print Resolution |
180dpi x 360dpi |
Maximum Print Speed |
Up to 30mm/sec (AC Adapter), Up to 20mm/sec (Battery) |
Keyboard |
QWERTY with Rubber Keys |
Cutter |
Fully Automatic with Strip Cutting Feature |
Batteries |
Includes Long Life Li-ion Rechargeable Battery Pack (BA-E001) |
Operation Mode |
Standalone, Wireless or Wired Download Standalone, Print From Computer, Tablet or Mobile Device |
Printer Emulation |
Raster Graphics |
Power Switch |
Soft Rubber Key |
Power Supply |
Rechargeable Li-ion Battery: 7.2 V
Model Name: BA-E001
|
AC Adapter (Optional) |
AC Adapter for USB Type-C: 12 V
Model Name: PA-AD-004
|
Preview Key |
Yes, WYSIWYG Graphic Display |
Interface |
Bluetooth Ver.5.0
Supported profile: SPP
Supported protocol: iAP
|
Near Field Communication |
No |
Mobile Device Printing App |
Cable Label Tool, Mobile Transfer Express, iPrint&Label, Brother Print SDK Demo |
Mobile Device Compatibility |
iOS® 3.0 or Greater, Android® 1.6 or Greater |
Software Features |
|
Microsoft Word/Outlook/Excel Add-ins |
Yes |
Auto Power Off |
Yes |
Number of Fonts |
Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
|
Fonts |
10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid) |
Font Sizes |
9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto) |
Number of Font Styles |
10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid) |
Built-in Symbols |
384 Industrial Symbols |
Font Styles |
10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid) |
Max. Print Height |
18.0 mm |
Maximum Print Lines |
0.94" (24 mm) tape: 1 - 7 lines
0.70" (18 mm) tape: 1 - 5 lines
0.47" (12 mm) tape: 1 - 3 lines
0.35" (9 mm) tape: 1 - 2 lines
0.23" (6 mm) tape: 1 - 2 lines
0.13" (3.5 mm) tape: 1 line
|
Multi-Block |
Up to 99 Blocks |
Label Length Setting |
Auto, 25mm to 999mm (Label Type Setting) |
Auto Incrementation |
Standard & Advanced Serialization Methods |
Auto Numbering |
Yes |
Horizontal Alignment |
Center, Left, Right, Justified |
Vertical Printing |
Yes |
Mirror Printing |
No |
Rotate Printing |
Input & Rotate Line by Line, Rotate & Repeat |
Text Insert |
Yes |
Text Framing/Fill Pattern |
6 Frames / No Fill Patterns |
Multi-copy Print |
Up to 99 Copies |
Memory |
Up to 99 Files or Up to 18297 Characters, Up to 6MB Downloadable Templates/Databases/Images |
Memory for Transferred Data (Number) |
Up to 99 Downloadable Templates/Databases/Images (6MB) |
Favorites Function Key |
No |
Date/Time Stamp |
No |
Snapper function |
Yes |
Download data to unit |
Download Templates, Databases & Images |
Built-in Designs/Templates |
Download Custom Designs/Templates & Built-In (General, Faceplates, Cable Wrap, Cable Flag, Heat Shrink, Patch Panel, Punch Block) |
Download templates from Brother Cloud |
Yes |
Auto Formats |
General, Faceplates, Cable Wrap, Cable Flag, Heat Shrink, Patch Panel, Punch Block |
Database Printing |
Print From Database On Computer or Download Database & Print Standalone |
Database File Compatibility |
MSDE/SQL Server, MS Access (*.accdb, *.mdb), MS Excel (*.xlsx, *.xls), Text (*.csv, *.txt) |
Internal Fonts |
14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic) |
Internal Font Sizes |
9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto) |
Internal Font Styles |
10 (Normal, Bold, Outline,Shadow, Italic, Italic Bold, Italic Outline, Italic Shadow, Italic Solid) |
2 Dimensional Barcodes
|
QR Code, (PTE510 / PTE560BT) Data Matrix (PTE510 / PTE560BT) |
Barcodes (Stand-alone mode) |
Code39, Code128, ITF (I-2/5), UPC-A, UPC-E, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), CODABAR (NW-7)
|
Barcodes (connected to computer) |
21 (Code39, Code128, ITF (I-2of5), GS1-128 (UCC/EAN128), GS1 DataBar (RSS), GS-1 Composite, Codabar (NW-7), UPC-A, UPC-E, EAN8, EAN13, ISBN-2, ISBN-5, Postnet, Laser Barcode, PDF-417, QR Code, Micro QR Code, Data Matrix, MaxiCode, Aztec) |
(PC) Connectivity |
Bluetooth® Wireless & USB (Mini) For Downloading & Printing
|
(Mac) Connectivity |
Bluetooth® Wireless & USB (Mini) For Printing Only
|
Operating System |
Windows Server® 2012 R2/2012/2008 R2/2008 (32/64bit), Windows® 10 & 11 (32/64bit), Windows Vista®(32/64bit), Mac® OS X 12, 13, 14 & later, iOS® 3.0 & later, Android® 1.6 & later |
Trademark |
P-touch EDGE® |

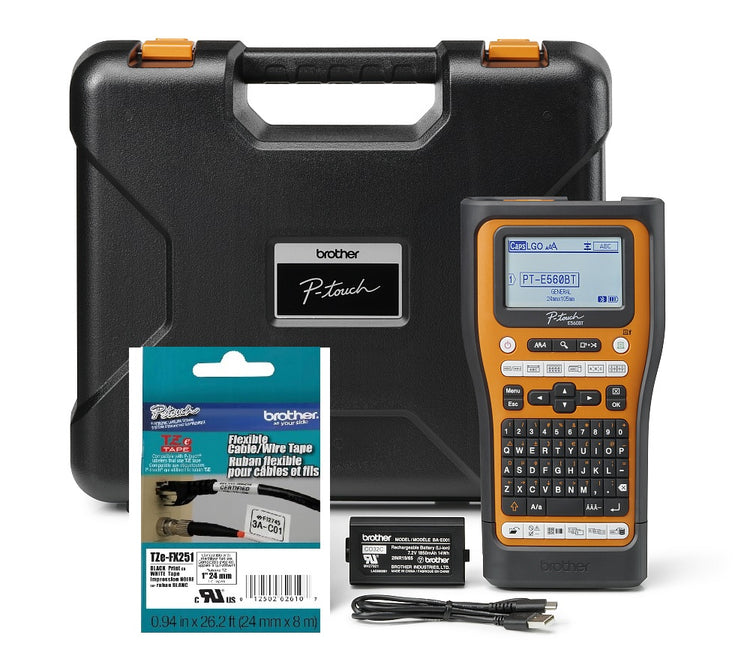

Carton Contents |
|
Included Items |
PT-E560BTVPW Labeler, (1) 1" Blk/Wht Flex ID Tape, Rechargeable Li-ion Battery, Carrying Case & USB-C®,
|
Accessories |
|
Carrying Case
|
Included |
Rechargeable Battery
|
Included |
Model Details |
|
Housing Dimensions |
Approximately 5.19" (W) x 9.61" (D) x 3.15" (H) (Approximately 132 mm (W) x 244 mm (D) x 80 mm (H)
|
Housing Weight |
2.32 lbs (without tape & batteries) |
Housing Color |
High Visibility Industrial Orange |
Warranty |
2 Years Limited Exchange Warranty |
UPC Code |
0012502674146 |
